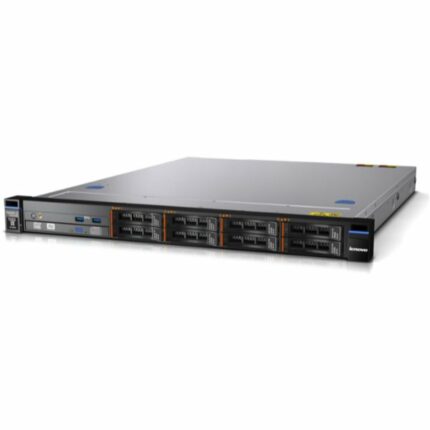

Lenovo System x3250 M5 Rack Server
- Form Factor/Height: Rack/1U
- Processor: Up to one Intel® Xeon® E3-1200 processor v3 series (quad-core), Core™ i3 series processor (quad-core), or Pentium® series processor (dual-core)
- Cache/Memory: Up to 8 MB per processor/Up to 32 GB via 4 slots (UDIMM)
- Media Bays: One optional optical bay for 2.5-inch model
- Disk Bays: Up to 4 3.5-inch or 8 2.5-inch HDDs
- RAID Support: Integrated ServeRAID C100 RAID-0, -1, (RAID-5 upgrade via Feature on Demand (FoD)), optional hardware RAID-0, -1, -10 or RAID-5, -50 or RAID-6, -60
- Power Supply: 1 fixed 300 W or up to 2 460 W hot-swap redundant
- Hot-Swap Components: Up to 4 3.5-inch or 8 2.5-inch HDDs, 460 W hot-swap redundant
- Network Interface: 2 Gbps Ethernet ports standard; 2 additional Gbps Ethernet ports upgradeable via FoD
- Expansion Slots: 1 PCIe 3.0 x8 slot and 1 PCIe 3.0 x8 (electrical x4) slot
- USB Ports: 2 USB 3.0 front/4 USB 2.0 rear/1 USB 2.0 internal
- Internal Storage: Up to 24 TB

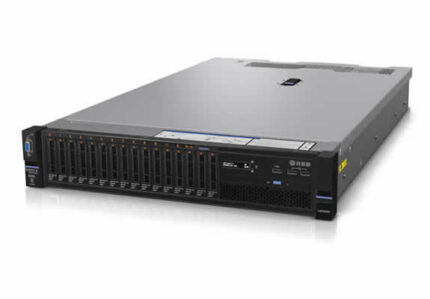

Lenovo System x3650 M5 2U Rack Server
- Form Factor/Height: 2U Rack
- Processor (max)/Cache (max): Up to two 22-core Intel® Xeon® processors E5-2600 v4 series /Up to 55MB per processor
- Memory (max): Up to 1.5TB – 2400 MHz – with 64GB TruDDR4 Memory LRDIMMs; system supports RDIMM/LRDIMM
- Disk Bays: Up to 24 front and 4 rear 2.5-inch HDDs/SSDs; or up to 12 3.5-inch and 2 rear 3.5-inch HDDs + 2 2.5-inch HDDs/SSDs; or up to 8 3.5-inch HDDs and 2 rear 3.5-inch or 2.5-inch HDDs/SSDs; up to 8 2.5-inch NVMe PCIe SSDs on 2.5-inch configurations
- Maximum Internal Storage: Up to 120TB
- RAID Support: 12Gbps dedicated slot for the first RAID; support for up to four RAID adapters
- Power Supply (std/max): 1/2 redundant 550W AC, 750W AC, 900W AC, 1500W AC, 900W DC 80 PLUS® Platinum, or 750W, 1300W AC 80 PLUS Titanium
- Hot-Swap Components: Power supplies, fan modules and HDDs/SSDs
- Network Interface: 4 × 1GbE (std.) and 1 x IMM; optional 10/40GbE ML2 or PCIe adapter; Trusted Platform Module built-in
- Expansion Slots: 1 – 8 PCIe 3.0 slots (supports up to 4 GPUs and up to 1 x ML2) and 1 dedicated RAID slot
- USB Ports/VGA Ports: Up to 3 x USB 2.0 front, 2 x USB 3.0 rear, 1 x USB 2.0 internal for hypervisor/1 front (optional) and 1 back
- Energy-Efficiency: ENERGY STAR® compliance (model dependent); up to 40ºC operating temp; 2 fan zones with up to 6 fans
- Systems Management: Lenovo XClarity Administrator with mobile option; Lenovo XClarity Pro software bundle; Lenovo XClarity Energy Manager; IMM2.1
- Operating Systems (OS) Supported: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere - (Optional USB Key or SD Media Adapter)
